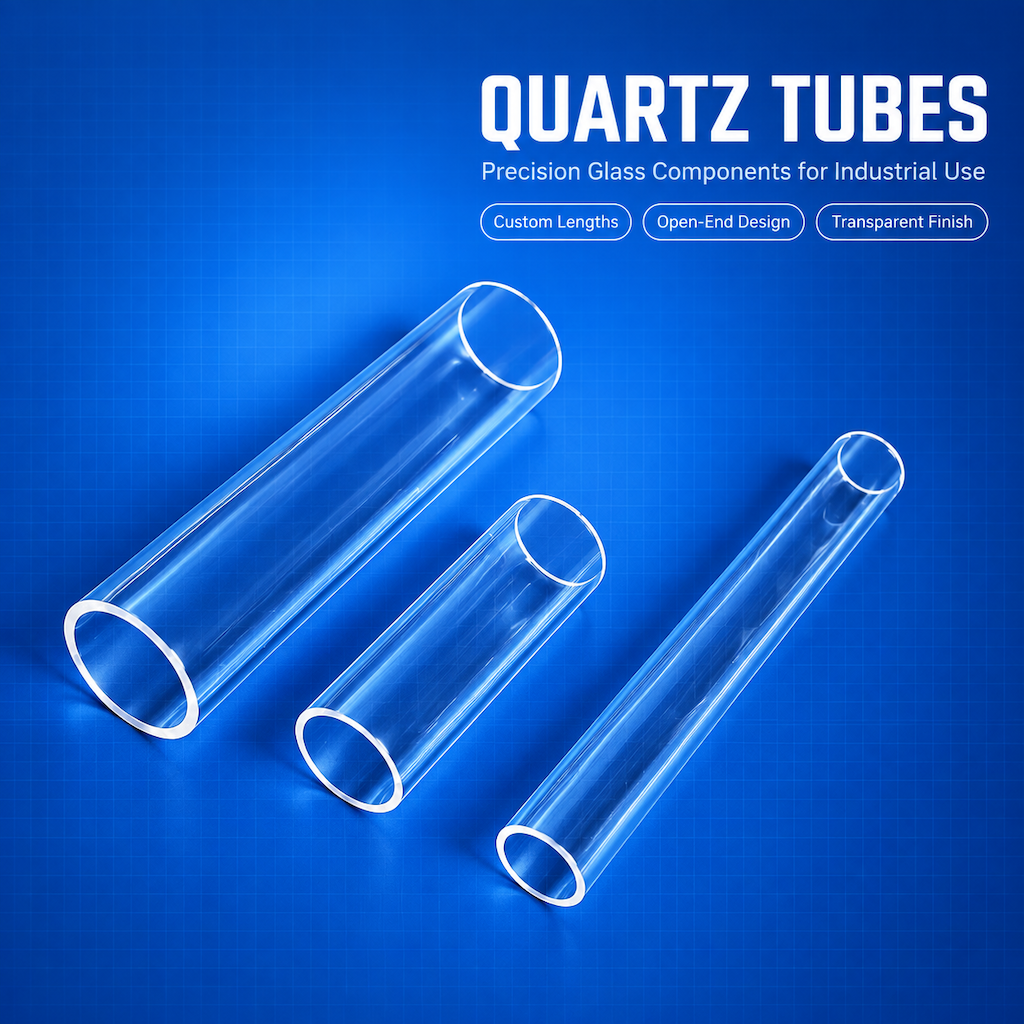

Quartz Thermal Protection Tubes for High‑Temperature Tube Furnace Research

A materials research laboratory based in South Korea focusing on high‑temperature sintering and thermal catalytic testing contacted us for custom quartz thermal protection tubes for their vertical tube furnace systems. Previously, the research team used ordinary thick‑wall borosilicate sleeves. Under long‑term high‑temperature cycling, the glass softened easily, transferred excessive heat to the furnace sealing assemblies and thermocouple components, and frequent thermal cracking led to unexpected experiment shutdowns and inconsistent thermal ageing data.

At the early communication stage, the research team shared detailed thermal and mechanical specifications. They specified a continuous working temperature up to 1200 °C, outstanding thermal shock resistance for rapid heating and quenching cycles, bubble‑free and fire‑polished surfaces, tight tolerance for outer diameter, inner diameter and straightness within ±0.04 mm. They also emphasised ultra‑low impurity release and corrosion resistance, as the test atmosphere included oxidising and weak corrosive vapours under vacuum and inert gas purge conditions. Our technical team replied promptly, sent material datasheets, thermal stability test reports and offered free prototype tubes for furnace validation.

After receiving the samples, the client carried out continuous high‑temperature holding, thermal shock cycling and long‑term atmosphere exposure tests over three weeks. They reported that borosilicate sleeves could not withstand sustained high temperatures and caused heat damage to peripheral fittings, while the quartz thermal protection tubes effectively isolated radiant heat, protected heating elements and sealing parts, with no devitrification or ion leaching, which guaranteed stable and repeatable thermal test cycles. They confirmed the final fabrication drawing, end finishing and batch inspection standards before releasing the formal order.

The bulk quartz thermal protection tubes were delivered on schedule. Installed as protective sleeves inside their tube furnaces, they solved the core problem of heat transfer and premature component failure. The research team highlighted that the high purity of fused silica avoided trace contamination for their catalyst performance evaluation.

Satisfied with both product quality and our technical confirmation and sample verification workflow, the Korean research lab placed follow‑up repeat orders and listed us as their preferred quartz component supplier for furnace consumables. This case proves high‑purity quartz thermal protection tubes are the reliable choice for high‑temperature materials labs, where thermal shielding, structural stability and material inertness are non‑negotiable.
